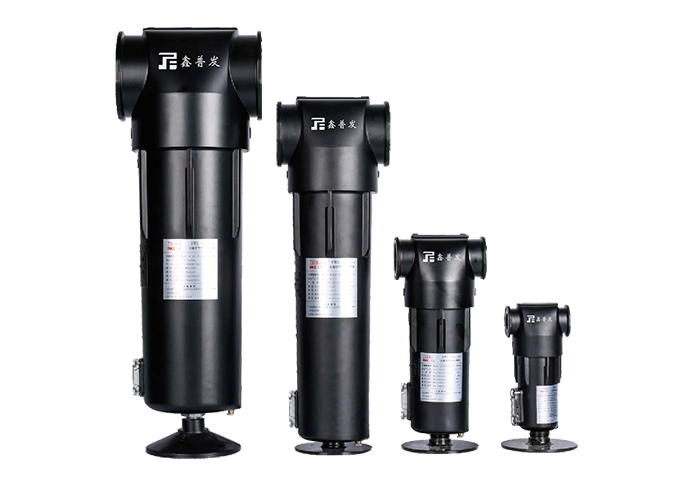

FWS Series Gas Water Separator

More than 99% of liquid water can be removed through the high-efficiency cyclone gas water separator, which protects the dryer and post-treatment filter to a certain extent, and improves the performance of these equipment; Reduce corrosion of pipes and damage to valves, cylinders, electronic components and other equipment caused by water; Protect the prefilter of the cold dryer and the suction dryer; Protect the filter from liquid contamination; More than 99% of liquid water can be removed by installing YUKA's high-efficiency cyclone gas water separator, which protects the dryer and post-treatment filter to a certain extent and improves the performance of these equipment; Reduce corrosion of pipes and damage to valves, cylinders, electronic components and other equipment caused by water; Protect the prefilter of the cold dryer and the suction dryer; Protect the filter from liquid contamination; Efficient removal of liquid from compressed air; Improve air quality.

ModelPipe diameterFlowOutline specification (mm)
L/Sm3/minscfmWDH
FWS010RC1/2"40.02.484.59679233
FWS020RC3/4"60.03.6127.19679233
FWS050RC1"75.04.5158.99679268
FWS060RC1"125.07.5264.8138111339
FWS070RC1-1/2"166.710.0353.1138111339
FWS100RC2"300.118.0635.6174142669
FWS110RC2-1/2"416.825.0882.8174142669
FWS131RC2-1/2"700.042.01483.1220184726
FWS140RC3"833.550.01765.6220184726
FWS140FDN80/DN100833.550.01765.6300184746/761
FWS150RC4"1000.260.02118.7220184726
FWS150FDN100/DN1251000.260.02118.7300184761/776
FWS170RC4"1166.770.02464.0220184983
FWS170FDN100/DN1251166.770.02464.03001841018/1033
Technical requirements:Maximum working pressure: 10 barg; Maximum operating temperature: 80 °C; Minimum operating temperature: 1.5 °C


PressureBarg12345678910111213141516
Psig152944597387100116131145160174189203219232
Correction factor0.380.530.650.760.850.931.001.071.131.191.231.311.361.411.461.51
ModelPipe diameterFlowOutline specification (mm)
L/Sm3/minscfmWDH
FWS010RC1/2"40.02.484.59679233
FWS020RC3/4"60.03.6127.19679233
FWS050RC1"75.04.5158.99679268
FWS060RC1"125.07.5264.8138111339
FWS070RC1-1/2"166.710.0353.1138111339
FWS100RC2"300.118.0635.6174142669
FWS110RC2-1/2"416.825.0882.8174142669
FWS131RC2-1/2"700.042.01483.1220184726
FWS140RC3"833.550.01765.6220184726
FWS140FDN80/DN100833.550.01765.6300184746/761
FWS150RC4"1000.260.02118.7220184726
FWS150FDN100/DN1251000.260.02118.7300184761/776
FWS170RC4"1166.770.02464.0220184983
FWS170FDN100/DN1251166.770.02464.03001841018/1033
Technical requirements:Maximum working pressure: 10 barg; Maximum operating temperature: 80 °C; Minimum operating temperature: 1.5 °C


PressureBarg12345678910111213141516
Psig152944597387100116131145160174189203219232
Correction factor0.380.530.650.760.850.931.001.071.131.191.231.311.361.411.461.51
