Cold dryer

Parameters
Download

ATLAS COPCO Process Product Family Summary - (OFA)

Category	Name	Pressure dew point/parameter	Pressure dew point/parameter average gas consumption%	Model of standard machine	Flow range m ˙/ min(FAD)	Place of Origin
Cold dryer series	Environmental friendly cold dryer	3-10°C	0%	FX17 - 21；F330-6600	20 - 400	Wuxi
Cold dryer series	Advanced environment-friendly cold dryer	3°C	0%	FD310 - 4000 A/W VSD	18 - 240	Belgium

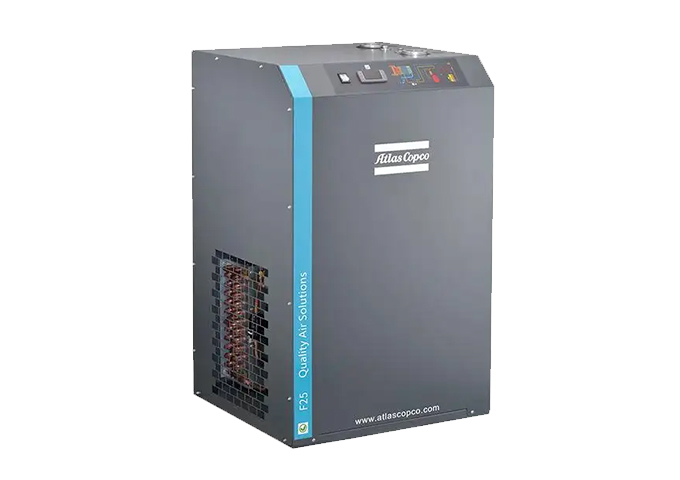

Environmental friendly refrigerated dryer F330-6600

Model	Cooling mode	Inlet flow	Pressure drop	Installed power	Cooling air volume	Cooling water volume	Interface size		Pre filter	Back filter	Two in one prefilter	Length	Width	Height	Weight
Model	A / W	L/ S	bar	KW	m³/min	L / min	Air line	Cooling water	1um 0.1ppm	0.01um 0.01ppm	0.0009um	mm	mm	mm	Kg
F330A	Air-cooled	330	0.15	2.6	75	N/A	G2.5	N/A	DD360	PD360	UD425+	1025	660	1119	175
F410A	Air-cooled	410	0.15	3	75	N/A	G2.5	N/A	DD630F	PD630F	UD550+ F	1025	660	1119	180
F600A	Air-cooled	600	0.15	5.3	150	N/A	DN100	N/A	DD630F	PD630F	UD550+ F	1133	1000	1550	325
F750A	Air-cooled	750	0.15	5	150	N/A	DN100	N/A	DD970F	PD970F	UD850+ F	1133	1000	1550	350
F850A	Air-cooled	850	0.15	6.3	150	N/A	DN100	N/A	DD970F	PD970F	UD850+ F	1133	1000	1550	350
F1000A	Air-cooled	1000	0.16	9.2	250	N/A	DN150	N/A	DD970F	PD970F	UD1100+ F	1644	1000	1550	550
F1250A	Air-cooled	1250	0.16	10	250	N/A	DN150	N/A	DD1260F	PD1260F	UD1400+ F	1644	1000	1550	600
F1670A	Air-cooled	1670	0.16	14.4	300	N/A	DN150	N/A	DD1600F	PD1600F	UD1800+ F	2100	1150	1750	700
F330W	Air-cooled	330	0.15	2.6	N/A	34	G 2.5	3/4”	DD360	PD360	UD425+	1025	660	1119	200
F410W	Air-cooled	410	0.15	2.9	N/A	42	G 2.5	3/4"	DD630F	PD630F	UD550+ F	1025	660	1119	205
F600W	Air-cooled	600	0.15	4.6	N/A	50	DN100	1”	DD630F	PD630F	UD550+ F	1133	1000	1550	325
F750W	Air-cooled	750	0.15	4.2	N/A	65	DN100	1”	DD970F	PD970F	UD850+ F	1133	1000	1550	350
F850W	Air-cooled	850	0.15	5.4	N/A	75	DN100	1”	DD970F	PD970F	UD850+ F	1133	1000	1550	350
F1000W	Air-cooled	1000	0.16	7.9	N/A	85	DN150	1”	DD970F	PD970F	UD1100+ F	1644	1000	1550	550
F1250W	Air-cooled	1250	0.16	8.8	N/A	110	DN150	1”	DD1260F	PD1260F	UD1400+ F	1644	1000	1550	600
F1670W	Air-cooled	1670	0.16	8	N/A	140	DN150	DN40	DD1600F	PD1600F	UD1800+ F	2100	1150	1750	700
F2100W	Air-cooled	2100	0.16	9.9	N/A	175	DN150	DN50	DD2200F	PD2200F	UD2200+F	2100	1150	1750	750
F2500W	Air-cooled	2500	0.16	13.7	N/A	210	DN200	DN50	DD2400F	PD2400F	UD2200+F	2300	1150	1750	850
F3300W	Air-cooled	3300	0.16	16.5	N/A	275	DN200	DN65	DD3600F	PD3600F	UD3000+ F	2300	1150	1750	950
F4170W	Air-cooled	4170	0.16	29	N/A	350	DN250	DN65	DD4000+F	PD4000+F	UD4000+ F	2300	1650	1900	1700
F5000W	Air-cooled	5000	0.16	30.3	N/A	420	DN250	DN65	DD5000+F	PD5000+F	UD5000+ F	2300	1650	1900	1900
F5800W	Air-cooled	5800	0.16	35.6	N/A	535	DN300	DN80	DD6000+F	PD6000+F	UD6000+ F	3300	1650	1900	2100
F6600W	Air-cooled	6600	0.16	41.8	N/A	585	DN300	DN80	DD7000+F	PD7000+F	UD7000+ F	3300	1650	1900	2300

F1670-6600 correction factor
Intake pressure	bar	2	3	4	5	6	7	8	9	10
Intake pressure	K1	0.53	0.64	0.75	0.85	0.91	1	1.02	1.04	1.07
Intake air temperature	°C	25	30	35	40	45	50	55
Intake air temperature	K2	1.55	1.46	1.22	1.00	0.82	0.67	0.55
Ambient temperature	°C	25	30	35	40	45
Ambient temperature	K3	1.16	1.11	1.05	1	0.90
Pressure dew point	°C	5	7	10	13	15
Pressure dew point	K4	0.60	0.84	1	1.30	1.50

F330-1250 correction factor
Intake pressure	bar	5	6	7	8	9	10
Intake pressure	K1	0.90	0.97	1.00	1.03	1.06	1.08
Intake air temperature	°C	25	30	35	40	45	50	55
Intake air temperature	K2	1.0	1.0	1.0	0.82	0.69	0.58	0.45
Ambient temperature	°C	25	30	35	40	45
Ambient temperature	K3	1.00	0.91	0.81	0.72	0.62
Pressure dew point	°C	3	7	10
Pressure dew point	K4	0.8	1.0	1.1

Reference status	Standard	F
Standard working condition	Ambient temperature/maximum	38/45°C
	Inlet temperature/maximum	40/55°C
	Working pressure/maximum	7.0/10bar
Standard configuration	Pressure dew point	3°C - 10°C
	Voltage	380/50/3
	Voltage	F330 F410 230V/50HZ
	Drain valve	Automatic electronic timing
	Refrigerant	R407C/R410A

Example of model selection:
Compressor outlet 100m ³/ Min,
when reaching 10 ° pressure dew point under the following working conditions Actual gas processing capacity:
Ambient temperature: 35 ° C
Intake air temperature: 45 ° C
Intake pressure: 8bar
Actual gas treatment capacity=100/K1/K2/K3/K4
Actual gas treatment volume=100m ³/ min/ 1.02 /0.82 /1.05 / 1 = 114m ³/ min
On the premise of ensuring PDP, F2100 needs to be selected to meet the actual working conditions.

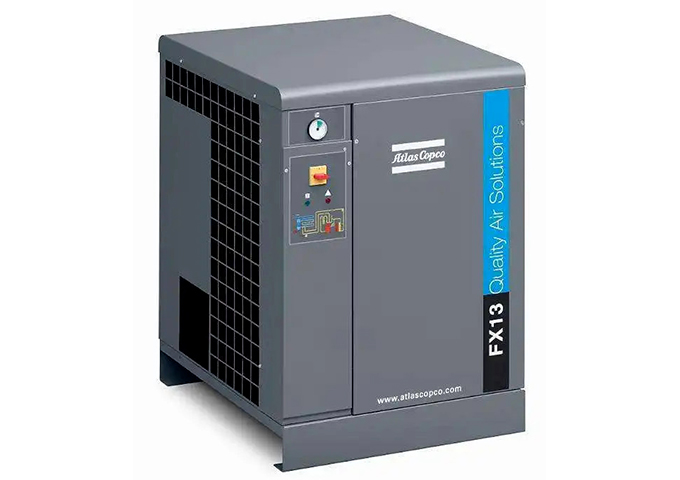

Environmental friendly refrigerated dryer FX17-21 A/W

Model	Cooling mode	Inlet flow	Pressure drop	Cryogen	Installed power	Cooling water volume	Interface size		Pre filter	Back filter	Two in one prefilter	Length	Width	Height	Weight
Model	A / W	m³/ min	bar	Kg	KW	L / min	Air line	Cooling water	1um 0.1ppm	0.01um 0.01ppm	0.0009um	mm	mm	mm	Kg
FX17 A	Air-cooled	24	0.25	5	4.7	N/A	3 "internal thread	N/A	DD360	PD360	UD425+	1082	1020	1560	330
FX18 A	Air-cooled	30	0.30	5	5.3	N/A	3 "internal thread	N/A	DD630F	PD630F	UD550+ F	1082	1020	1560	340
FX19 A	Air-cooled	35	0.30	5.5	6.3	N/A	3 "internal thread	N/A	DD630F	PD630F	UD550+ F	1082	1020	1560	355
FX19.5 A	Air-cooled	45	0.25	6.6	6.7	N/A	DN125	N/A	DD970F	PD970F	UD850+ F	1082	1020	1560	380
FX20 A	Air-cooled	50	0.30	10.5	8.4	N/A	DN125	N/A	DD970F	PD970F	UD850+ F	2099	1020	1560	555
FX21 A	Air-cooled	70	0.25	11.5	11.8	N/A	DN125	N/A	DD1260F	PD1260F	UD1100+ F	2099	1020	1560	605
FX17 W	water-cooling	24	0.25	5	3.9	45	3 "internal thread	3/4”	DD360	PD360	UD425+	1082	1020	1420	325
FX18 W	water-cooling	30	0.30	5	4.5	50	3 "internal thread	3/4”	DD630F	PD630F	UD550+ F	1082	1020	1420	335
FX19 W	water-cooling	35	0.30	5.5	5.6	55	3 "internal thread	3/4”	DD630F	PD630F	UD550+ F	1082	1020	1420	350
FX19.5 W	water-cooling	45	0.25	6.6	5.6	65	DN125	1”	DD970F	PD970F	UD850+ F	1082	1020	1420	380
FX20 W	water-cooling	50	0.30	10.5	6.8	75	DN125	1”	DD970F	PD970F	UD850+ F	2099	1020	1420	550
FX21 W	water-cooling	70	0.25	11.5	10.2	90	DN125	1”	DD1260F	PD1260F	UD1100+ F	2099	1020	1420	600

Correction factor
Intake pressure	bar	6	7	8	10	11	12	13
Intake pressure	K1	0.97	1	1.03	1.07	1.09	1.11	1.12
Intake air temperature	°C	25	30	35	40	45	50	55
Intake air temperature	K2	1.4	1.4	1.2	1	0.8	0.7	0.6
Ambient temperature	°C	25	30	35	38	40	45
Ambient temperature	K3	1.25	1.20	1.08	1	0.95	0.8
Pressure dew point	°C	3	7	10
Pressure dew point	K4	0.67	0.81	1

Reference status	Standard	FX17-19 FX20-21
Standard working condition	Ambient temperature/maximum	38/46°C
	Inlet temperature/max. working pressure/max	40/60°C
	Working pressure/maximum	7.0/14bar
Standard configuration	Pressure dew point	3°C - 10°C
	Voltage	380/50/3
	Drain valve refrigerant	Automatic electronic liquid level
	Refrigerant	R410A R404A

Example of model selection:
Compressor outlet 50m ³/ Min, reaching 10 ° under the following working conditions
Actual required gas treatment capacity at pressure dew point:
Ambient temperature: 35 ° C
Intake air temperature: 40 ° C
Intake pressure: 8bar
Actual gas treatment capacity=50/K1/K2/K3/K4
Actual gas treatment volume=50m ³/ min/1.03/1/1.08/1=45m ³/ min
On the premise of ensuring PDP, FX19.5 needs to be selected to meet the actual working conditions.

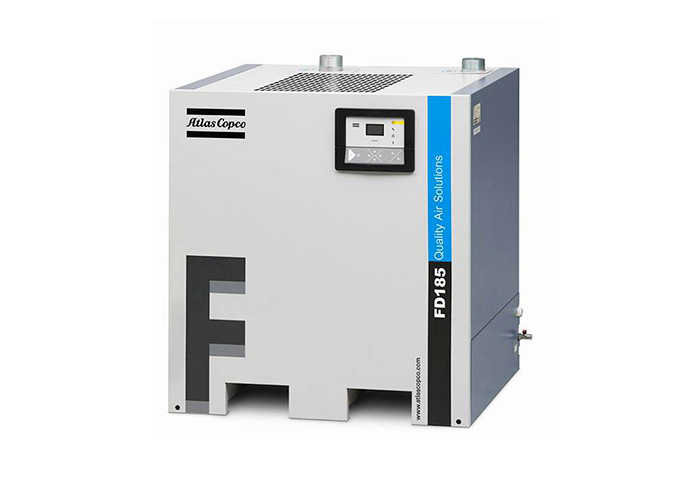

Advanced refrigerated dryer FD310 - 4000 A/W VSD

Model	Cooling mode	Inlet flow	Pressure drop	Cryogen	Installed power	Cooling water volume	Interface size		Pre filter	Back filter	Two in one front Filter	Length	Width	Height	Weight
Model	A/W	m³/min	bar	Kg	KW	L/min	Air line	Cooling water	1um 0.1ppm	0.01um 0.01ppm	0.0009um	mm	mm	mm	Kg
FD310A	Air-cooled	19	0.23	R410a	2.8~2.9	N/A	G3	N/A	DD360	PD360	UD425+	986	850	1190	198
FD410A	Air-cooled	25	0.21	R410a	3.0~4.8	N/A	G3	N/A	DD630F	PD630F	UD550+ F	986	850	1375	220
FD510A	Air-cooled	31	0.20	R410a	4.5~6.9	N/A	G3	N/A	DD630F	PD630F	UD550+ F	1250	850	1375	260
FD610A	Air-cooled	37	0.17	R410a	4.8	N/A	DIN100	N/A	DD630F	PD630F	UD550+ F	1040	1060	1580	320
FD760A	Air-cooled	46	0.17	R410a	5.3	N/A	DIN100	N/A	DD970F	PD970F	UD850+ F	1245	1060	1580	380
FD760A VSD	Air-cooled	46	0.17	R410a	5.3	N/A	DIN100	N/A	DD970F	PD970F	UD850+ F	1245	1060	1580	380
FD870A	Air-cooled	52	0.14	R410a	6.6	N/A	DIN150	N/A	DD970F	PD970F	UD850+ F	1245	1060	1580	400
FD870A VSD	Air-cooled	52	0.14	R410a	5.8	N/A	DIN150	N/A	DD970F	PD970F	UD850+ F	1245	1060	1580	400
FD1010A	Air-cooled	61	0.17	R410a	7.4	N/A	DIN150	N/A	DD970F	PD970F	UD1100+ F	1580	1060	1580	460
FD1010A VSD	Air-cooled	61	0.17	R410a	6.6	N/A	DIN150	N/A	DD970F	PD970F	UD1100+ F	1580	1060	1580	460
FD1250+A	Air-cooled	75	0.18	R410a	8.0	N/A	DIN150	N/A	DD1260F	PD1260F	UD1400+ F	1474	1579	2295	850
FD1250+A VSD	Air-cooled	75	0.18	R410a	5.5	N/A	DIN150	N/A	DD1260F	PD1260F	UD1400+ F	1474	1579	2295	850
FD1500+A	Air-cooled	84	0.18	R410a	7.7	N/A	DIN150	N/A	DD1600F	PD1600F	UD1400+ F	1474	1579	2295	880
FD1500+A VSD	Air-cooled	84	0.18	R410a	7.4	N/A	DIN150	N/A	DD1600F	PD1600F	UD1400+ F	1474	1579	2295	880
FD1750+A	Air-cooled	96	0.15	R410a	10.5	N/A	DIN150	N/A	DD1600F	PD1600F	UD1800+ F	1474	1579	2295	920
FD1750+A VSD	Air-cooled	96	0.15	R410a	8.4	N/A	DIN150	N/A	DD1600F	PD1600F	UD1800+ F	1474	1579	2295	920
FD2000+A	Air-cooled	120	0.19	R410a	10.5	N/A	DIN150	N/A	DD2200F	PD2200F	UD2200+F	1474	1579	2295	965
FD2000+A VSD	Air-cooled	120	0.19	R410a	8.8	N/A	DIN150	N/A	DD2200F	PD2200F	UD2200+F	1474	1579	2295	965
FD2400+A VSD	Air-cooled	120	0.19	R410a	11.0	N/A	DIN150	N/A	DD2200F	PD2200F	UD2200+F	1474	1579	2295	990
FD310W	water-cooling	19	0.23	R410a	2.0	0.2	G3	G3	DD360	PD360	UD425+	986	850	1190	180
FD410W	water-cooling	25	0.21	R410a	2.4	0.2	G3	3/4"	DD630F	PD630F	UD550+ F	1250	850	1375	240
FD510W	water-cooling	31	0.20	R410a	4.1	0.3	G3	3/4"	DD630F	PD630F	UD550+ F	1250	850	1375	260
FD610W	water-cooling	37	0.17	R410a	3.1	0.4	DIN100	1 1/4"	DD630F	PD630F	UD550+ F	1245	1060	1580	250
FD760W	water-cooling	46	0.17	R410a	3.6	0.5	DIN100	1 1/4"	DD970F	PD970F	UD850+ F	1245	1060	1580	360
FD760W VSD	water-cooling	46	0.09	R410a	3.3	0.5	DIN100	1 1/4"	DD970F	PD970F	UD850+ F	1580	1060	1580	410
FD870W	water-cooling	52	0.14	R410a	4.5	0.8	DIN150	1 1/4"	DD970F	PD970F	UD850+ F	1245	1060	1580	370
FD870W VSD	water-cooling	52	0.12	R410a	4.2	0.8	DIN150	1 1/4"	DD970F	PD970F	UD850+ F	1580	1060	1580	410
FD1010W	water-cooling	61	0.17	R410a	5.1	0.8	DIN150	1 1/4"	DD970F	PD970F	UD1100+ F	1245	1060	1580	380
FD1010W VSD	water-cooling	61	0.17	R410a	5.6	0.8	DIN150	1 1/4"	DD970F	PD970F	UD1100+ F	1580	1060	1580	410
FD1250+W	water-cooling	75	0.18	R410a	5.3	0.9	DIN150	1"	DD1260F	PD1260F	UD1400+ F	1474	1579	1725	800
FD1250+W VSD	water-cooling	75	0.18	R410a	4.4	0.9	DIN150	1"	DD1260F	PD1260F	UD1400+ F	1474	1579	1725	800
FD1500+W	water-cooling	84	0.18	R410a	5.8	1.1	DIN150	1"	DD1600F	PD1600F	UD1400+ F	1474	1579	1725	815
FD1500+ W VSD	water-cooling	84	0.18	R410a	5.1	1.1	DIN150	1"	DD1600F	PD1600F	UD1400+ F	1474	1579	1725	815
FD1750+W	water-cooling	96	0.15	R410a	6.4	1.3	DIN150	1"	DD1600F	PD1600F	UD1800+ F	1474	1579	1725	855
FD1750+ W VSD	water-cooling	96	0.15	R410a	6.1	1.3	DIN150	1"	DD1600F	PD1600F	UD1800+ F	1474	1579	1725	855
FD2000+W	water-cooling	120	0.19	R410a	8.7	1.6	DIN150	2"	DD2200F	PD2200F	UD2200+F	1474	1579	1725	865
FD2000+ W VSD	water-cooling	120	0.19	R410a	6.7	1.6	DIN150	2"	DD2200F	PD2200F	UD2200+F	1474	1579	1725	865
FD2400+ W VSD	water-cooling	144	0.27	R410a	8.2	1.8	DIN150	2"	DD2400F	PD2400F	UD3000+ F	1474	1579	1725	870
FD4000 W VSD	water-cooling	240	0.22	R410a	13.2	2.2	DIN250	2"	DD4000F	PD4000F	UD4000+ F	2200	2300	1910	2010

Reference status	Standard	FD310-1010 FD1250-4000
Standard working condition	Ambient temperature/maximum	25/50°C
	Inlet temperature/maximum	35/50°C
	Working pressure/maximum	7.0/14bar 7.0/13bar
Standard configuration	Pressure dew point	3°C
	Voltage	400/50/3
	Drain valve	Automatic electronics
	Control	Remote start/stop and status feedback
	Refrigerant	R410A

Correction factor
Intake pressure	bar	6	7	8	10	11	12	13
Intake pressure	K1	0.96	1.00	1.05	1.08	1.10	1.15	1.20
Intake air temperature	°C	25	30	35	40	45	50	55
Intake air temperature	K2	1.57	1.24	1.00	0.82	0.69	0.58	0.45
Ambient temperature	°C	25	30	35	40	45
Ambient temperature	K3	1.15	1.10	1.00	0.90	0.80
Pressure dew point	°C	3	7	10
Pressure dew point	K4	0.8	0.9	1.0

Example of model selection:
Compressor outlet 20m ³/ Min, the actual amount of gas to be treated when the dew point of 10 ° pressure is reached under the following conditions:
Ambient temperature: 35 ° C
Intake air temperature: 40 ° C
Intake pressure: 8bar
Actual gas treatment capacity=20/K1/K2/K3/K4
Actual required treatment capacity=20m ³/ min/1.05/0.82/1.0/1.0=23m ³/ min
On the premise of ensuring PDP, FD410 needs to be selected to meet the requirements of actual working conditions.

ATLAS COPCO Process Product Family Summary - (OFA)

Category	Name	Pressure dew point/parameter	Pressure dew point/parameter average gas consumption%	Model of standard machine	Flow range m ˙/ min(FAD)	Place of Origin
Cold dryer series	Environmental friendly cold dryer	3-10°C	0%	FX17 - 21；F330-6600	20 - 400	Wuxi
Cold dryer series	Advanced environment-friendly cold dryer	3°C	0%	FD310 - 4000 A/W VSD	18 - 240	Belgium

Environmental friendly refrigerated dryer F330-6600

Model	Cooling mode	Inlet flow	Pressure drop	Installed power	Cooling air volume	Cooling water volume	Interface size		Pre filter	Back filter	Two in one prefilter	Length	Width	Height	Weight
Model	A / W	L/ S	bar	KW	m³/min	L / min	Air line	Cooling water	1um 0.1ppm	0.01um 0.01ppm	0.0009um	mm	mm	mm	Kg
F330A	Air-cooled	330	0.15	2.6	75	N/A	G2.5	N/A	DD360	PD360	UD425+	1025	660	1119	175
F410A	Air-cooled	410	0.15	3	75	N/A	G2.5	N/A	DD630F	PD630F	UD550+ F	1025	660	1119	180
F600A	Air-cooled	600	0.15	5.3	150	N/A	DN100	N/A	DD630F	PD630F	UD550+ F	1133	1000	1550	325
F750A	Air-cooled	750	0.15	5	150	N/A	DN100	N/A	DD970F	PD970F	UD850+ F	1133	1000	1550	350
F850A	Air-cooled	850	0.15	6.3	150	N/A	DN100	N/A	DD970F	PD970F	UD850+ F	1133	1000	1550	350
F1000A	Air-cooled	1000	0.16	9.2	250	N/A	DN150	N/A	DD970F	PD970F	UD1100+ F	1644	1000	1550	550
F1250A	Air-cooled	1250	0.16	10	250	N/A	DN150	N/A	DD1260F	PD1260F	UD1400+ F	1644	1000	1550	600
F1670A	Air-cooled	1670	0.16	14.4	300	N/A	DN150	N/A	DD1600F	PD1600F	UD1800+ F	2100	1150	1750	700
F330W	Air-cooled	330	0.15	2.6	N/A	34	G 2.5	3/4”	DD360	PD360	UD425+	1025	660	1119	200
F410W	Air-cooled	410	0.15	2.9	N/A	42	G 2.5	3/4"	DD630F	PD630F	UD550+ F	1025	660	1119	205
F600W	Air-cooled	600	0.15	4.6	N/A	50	DN100	1”	DD630F	PD630F	UD550+ F	1133	1000	1550	325
F750W	Air-cooled	750	0.15	4.2	N/A	65	DN100	1”	DD970F	PD970F	UD850+ F	1133	1000	1550	350
F850W	Air-cooled	850	0.15	5.4	N/A	75	DN100	1”	DD970F	PD970F	UD850+ F	1133	1000	1550	350
F1000W	Air-cooled	1000	0.16	7.9	N/A	85	DN150	1”	DD970F	PD970F	UD1100+ F	1644	1000	1550	550
F1250W	Air-cooled	1250	0.16	8.8	N/A	110	DN150	1”	DD1260F	PD1260F	UD1400+ F	1644	1000	1550	600
F1670W	Air-cooled	1670	0.16	8	N/A	140	DN150	DN40	DD1600F	PD1600F	UD1800+ F	2100	1150	1750	700
F2100W	Air-cooled	2100	0.16	9.9	N/A	175	DN150	DN50	DD2200F	PD2200F	UD2200+F	2100	1150	1750	750
F2500W	Air-cooled	2500	0.16	13.7	N/A	210	DN200	DN50	DD2400F	PD2400F	UD2200+F	2300	1150	1750	850
F3300W	Air-cooled	3300	0.16	16.5	N/A	275	DN200	DN65	DD3600F	PD3600F	UD3000+ F	2300	1150	1750	950
F4170W	Air-cooled	4170	0.16	29	N/A	350	DN250	DN65	DD4000+F	PD4000+F	UD4000+ F	2300	1650	1900	1700
F5000W	Air-cooled	5000	0.16	30.3	N/A	420	DN250	DN65	DD5000+F	PD5000+F	UD5000+ F	2300	1650	1900	1900
F5800W	Air-cooled	5800	0.16	35.6	N/A	535	DN300	DN80	DD6000+F	PD6000+F	UD6000+ F	3300	1650	1900	2100
F6600W	Air-cooled	6600	0.16	41.8	N/A	585	DN300	DN80	DD7000+F	PD7000+F	UD7000+ F	3300	1650	1900	2300

F1670-6600 correction factor
Intake pressure	bar	2	3	4	5	6	7	8	9	10
Intake pressure	K1	0.53	0.64	0.75	0.85	0.91	1	1.02	1.04	1.07
Intake air temperature	°C	25	30	35	40	45	50	55
Intake air temperature	K2	1.55	1.46	1.22	1.00	0.82	0.67	0.55
Ambient temperature	°C	25	30	35	40	45
Ambient temperature	K3	1.16	1.11	1.05	1	0.90
Pressure dew point	°C	5	7	10	13	15
Pressure dew point	K4	0.60	0.84	1	1.30	1.50

F330-1250 correction factor
Intake pressure	bar	5	6	7	8	9	10
Intake pressure	K1	0.90	0.97	1.00	1.03	1.06	1.08
Intake air temperature	°C	25	30	35	40	45	50	55
Intake air temperature	K2	1.0	1.0	1.0	0.82	0.69	0.58	0.45
Ambient temperature	°C	25	30	35	40	45
Ambient temperature	K3	1.00	0.91	0.81	0.72	0.62
Pressure dew point	°C	3	7	10
Pressure dew point	K4	0.8	1.0	1.1

Reference status	Standard	F
Standard working condition	Ambient temperature/maximum	38/45°C
	Inlet temperature/maximum	40/55°C
	Working pressure/maximum	7.0/10bar
Standard configuration	Pressure dew point	3°C - 10°C
	Voltage	380/50/3
	Voltage	F330 F410 230V/50HZ
	Drain valve	Automatic electronic timing
	Refrigerant	R407C/R410A

Environmental friendly refrigerated dryer FX17-21 A/W

Model	Cooling mode	Inlet flow	Pressure drop	Cryogen	Installed power	Cooling water volume	Interface size		Pre filter	Back filter	Two in one prefilter	Length	Width	Height	Weight
Model	A / W	m³/ min	bar	Kg	KW	L / min	Air line	Cooling water	1um 0.1ppm	0.01um 0.01ppm	0.0009um	mm	mm	mm	Kg
FX17 A	Air-cooled	24	0.25	5	4.7	N/A	3 "internal thread	N/A	DD360	PD360	UD425+	1082	1020	1560	330
FX18 A	Air-cooled	30	0.30	5	5.3	N/A	3 "internal thread	N/A	DD630F	PD630F	UD550+ F	1082	1020	1560	340
FX19 A	Air-cooled	35	0.30	5.5	6.3	N/A	3 "internal thread	N/A	DD630F	PD630F	UD550+ F	1082	1020	1560	355
FX19.5 A	Air-cooled	45	0.25	6.6	6.7	N/A	DN125	N/A	DD970F	PD970F	UD850+ F	1082	1020	1560	380
FX20 A	Air-cooled	50	0.30	10.5	8.4	N/A	DN125	N/A	DD970F	PD970F	UD850+ F	2099	1020	1560	555
FX21 A	Air-cooled	70	0.25	11.5	11.8	N/A	DN125	N/A	DD1260F	PD1260F	UD1100+ F	2099	1020	1560	605
FX17 W	water-cooling	24	0.25	5	3.9	45	3 "internal thread	3/4”	DD360	PD360	UD425+	1082	1020	1420	325
FX18 W	water-cooling	30	0.30	5	4.5	50	3 "internal thread	3/4”	DD630F	PD630F	UD550+ F	1082	1020	1420	335
FX19 W	water-cooling	35	0.30	5.5	5.6	55	3 "internal thread	3/4”	DD630F	PD630F	UD550+ F	1082	1020	1420	350
FX19.5 W	water-cooling	45	0.25	6.6	5.6	65	DN125	1”	DD970F	PD970F	UD850+ F	1082	1020	1420	380
FX20 W	water-cooling	50	0.30	10.5	6.8	75	DN125	1”	DD970F	PD970F	UD850+ F	2099	1020	1420	550
FX21 W	water-cooling	70	0.25	11.5	10.2	90	DN125	1”	DD1260F	PD1260F	UD1100+ F	2099	1020	1420	600

Correction factor
Intake pressure	bar	6	7	8	10	11	12	13
Intake pressure	K1	0.97	1	1.03	1.07	1.09	1.11	1.12
Intake air temperature	°C	25	30	35	40	45	50	55
Intake air temperature	K2	1.4	1.4	1.2	1	0.8	0.7	0.6
Ambient temperature	°C	25	30	35	38	40	45
Ambient temperature	K3	1.25	1.20	1.08	1	0.95	0.8
Pressure dew point	°C	3	7	10
Pressure dew point	K4	0.67	0.81	1

Reference status	Standard	FX17-19 FX20-21
Standard working condition	Ambient temperature/maximum	38/46°C
	Inlet temperature/max. working pressure/max	40/60°C
	Working pressure/maximum	7.0/14bar
Standard configuration	Pressure dew point	3°C - 10°C
	Voltage	380/50/3
	Drain valve refrigerant	Automatic electronic liquid level
	Refrigerant	R410A R404A

Advanced refrigerated dryer FD310 - 4000 A/W VSD

Model	Cooling mode	Inlet flow	Pressure drop	Cryogen	Installed power	Cooling water volume	Interface size		Pre filter	Back filter	Two in one front Filter	Length	Width	Height	Weight
Model	A/W	m³/min	bar	Kg	KW	L/min	Air line	Cooling water	1um 0.1ppm	0.01um 0.01ppm	0.0009um	mm	mm	mm	Kg
FD310A	Air-cooled	19	0.23	R410a	2.8~2.9	N/A	G3	N/A	DD360	PD360	UD425+	986	850	1190	198
FD410A	Air-cooled	25	0.21	R410a	3.0~4.8	N/A	G3	N/A	DD630F	PD630F	UD550+ F	986	850	1375	220
FD510A	Air-cooled	31	0.20	R410a	4.5~6.9	N/A	G3	N/A	DD630F	PD630F	UD550+ F	1250	850	1375	260
FD610A	Air-cooled	37	0.17	R410a	4.8	N/A	DIN100	N/A	DD630F	PD630F	UD550+ F	1040	1060	1580	320
FD760A	Air-cooled	46	0.17	R410a	5.3	N/A	DIN100	N/A	DD970F	PD970F	UD850+ F	1245	1060	1580	380
FD760A VSD	Air-cooled	46	0.17	R410a	5.3	N/A	DIN100	N/A	DD970F	PD970F	UD850+ F	1245	1060	1580	380
FD870A	Air-cooled	52	0.14	R410a	6.6	N/A	DIN150	N/A	DD970F	PD970F	UD850+ F	1245	1060	1580	400
FD870A VSD	Air-cooled	52	0.14	R410a	5.8	N/A	DIN150	N/A	DD970F	PD970F	UD850+ F	1245	1060	1580	400
FD1010A	Air-cooled	61	0.17	R410a	7.4	N/A	DIN150	N/A	DD970F	PD970F	UD1100+ F	1580	1060	1580	460
FD1010A VSD	Air-cooled	61	0.17	R410a	6.6	N/A	DIN150	N/A	DD970F	PD970F	UD1100+ F	1580	1060	1580	460
FD1250+A	Air-cooled	75	0.18	R410a	8.0	N/A	DIN150	N/A	DD1260F	PD1260F	UD1400+ F	1474	1579	2295	850
FD1250+A VSD	Air-cooled	75	0.18	R410a	5.5	N/A	DIN150	N/A	DD1260F	PD1260F	UD1400+ F	1474	1579	2295	850
FD1500+A	Air-cooled	84	0.18	R410a	7.7	N/A	DIN150	N/A	DD1600F	PD1600F	UD1400+ F	1474	1579	2295	880
FD1500+A VSD	Air-cooled	84	0.18	R410a	7.4	N/A	DIN150	N/A	DD1600F	PD1600F	UD1400+ F	1474	1579	2295	880
FD1750+A	Air-cooled	96	0.15	R410a	10.5	N/A	DIN150	N/A	DD1600F	PD1600F	UD1800+ F	1474	1579	2295	920
FD1750+A VSD	Air-cooled	96	0.15	R410a	8.4	N/A	DIN150	N/A	DD1600F	PD1600F	UD1800+ F	1474	1579	2295	920
FD2000+A	Air-cooled	120	0.19	R410a	10.5	N/A	DIN150	N/A	DD2200F	PD2200F	UD2200+F	1474	1579	2295	965
FD2000+A VSD	Air-cooled	120	0.19	R410a	8.8	N/A	DIN150	N/A	DD2200F	PD2200F	UD2200+F	1474	1579	2295	965
FD2400+A VSD	Air-cooled	120	0.19	R410a	11.0	N/A	DIN150	N/A	DD2200F	PD2200F	UD2200+F	1474	1579	2295	990
FD310W	water-cooling	19	0.23	R410a	2.0	0.2	G3	G3	DD360	PD360	UD425+	986	850	1190	180
FD410W	water-cooling	25	0.21	R410a	2.4	0.2	G3	3/4"	DD630F	PD630F	UD550+ F	1250	850	1375	240
FD510W	water-cooling	31	0.20	R410a	4.1	0.3	G3	3/4"	DD630F	PD630F	UD550+ F	1250	850	1375	260
FD610W	water-cooling	37	0.17	R410a	3.1	0.4	DIN100	1 1/4"	DD630F	PD630F	UD550+ F	1245	1060	1580	250
FD760W	water-cooling	46	0.17	R410a	3.6	0.5	DIN100	1 1/4"	DD970F	PD970F	UD850+ F	1245	1060	1580	360
FD760W VSD	water-cooling	46	0.09	R410a	3.3	0.5	DIN100	1 1/4"	DD970F	PD970F	UD850+ F	1580	1060	1580	410
FD870W	water-cooling	52	0.14	R410a	4.5	0.8	DIN150	1 1/4"	DD970F	PD970F	UD850+ F	1245	1060	1580	370
FD870W VSD	water-cooling	52	0.12	R410a	4.2	0.8	DIN150	1 1/4"	DD970F	PD970F	UD850+ F	1580	1060	1580	410
FD1010W	water-cooling	61	0.17	R410a	5.1	0.8	DIN150	1 1/4"	DD970F	PD970F	UD1100+ F	1245	1060	1580	380
FD1010W VSD	water-cooling	61	0.17	R410a	5.6	0.8	DIN150	1 1/4"	DD970F	PD970F	UD1100+ F	1580	1060	1580	410
FD1250+W	water-cooling	75	0.18	R410a	5.3	0.9	DIN150	1"	DD1260F	PD1260F	UD1400+ F	1474	1579	1725	800
FD1250+W VSD	water-cooling	75	0.18	R410a	4.4	0.9	DIN150	1"	DD1260F	PD1260F	UD1400+ F	1474	1579	1725	800
FD1500+W	water-cooling	84	0.18	R410a	5.8	1.1	DIN150	1"	DD1600F	PD1600F	UD1400+ F	1474	1579	1725	815
FD1500+ W VSD	water-cooling	84	0.18	R410a	5.1	1.1	DIN150	1"	DD1600F	PD1600F	UD1400+ F	1474	1579	1725	815
FD1750+W	water-cooling	96	0.15	R410a	6.4	1.3	DIN150	1"	DD1600F	PD1600F	UD1800+ F	1474	1579	1725	855
FD1750+ W VSD	water-cooling	96	0.15	R410a	6.1	1.3	DIN150	1"	DD1600F	PD1600F	UD1800+ F	1474	1579	1725	855
FD2000+W	water-cooling	120	0.19	R410a	8.7	1.6	DIN150	2"	DD2200F	PD2200F	UD2200+F	1474	1579	1725	865
FD2000+ W VSD	water-cooling	120	0.19	R410a	6.7	1.6	DIN150	2"	DD2200F	PD2200F	UD2200+F	1474	1579	1725	865
FD2400+ W VSD	water-cooling	144	0.27	R410a	8.2	1.8	DIN150	2"	DD2400F	PD2400F	UD3000+ F	1474	1579	1725	870
FD4000 W VSD	water-cooling	240	0.22	R410a	13.2	2.2	DIN250	2"	DD4000F	PD4000F	UD4000+ F	2200	2300	1910	2010

Reference status	Standard	FD310-1010 FD1250-4000
Standard working condition	Ambient temperature/maximum	25/50°C
	Inlet temperature/maximum	35/50°C
	Working pressure/maximum	7.0/14bar 7.0/13bar
Standard configuration	Pressure dew point	3°C
	Voltage	400/50/3
	Drain valve	Automatic electronics
	Control	Remote start/stop and status feedback
	Refrigerant	R410A

Correction factor
Intake pressure	bar	6	7	8	10	11	12	13
Intake pressure	K1	0.96	1.00	1.05	1.08	1.10	1.15	1.20
Intake air temperature	°C	25	30	35	40	45	50	55
Intake air temperature	K2	1.57	1.24	1.00	0.82	0.69	0.58	0.45
Ambient temperature	°C	25	30	35	40	45
Ambient temperature	K3	1.15	1.10	1.00	0.90	0.80
Pressure dew point	°C	3	7	10
Pressure dew point	K4	0.8	0.9	1.0
