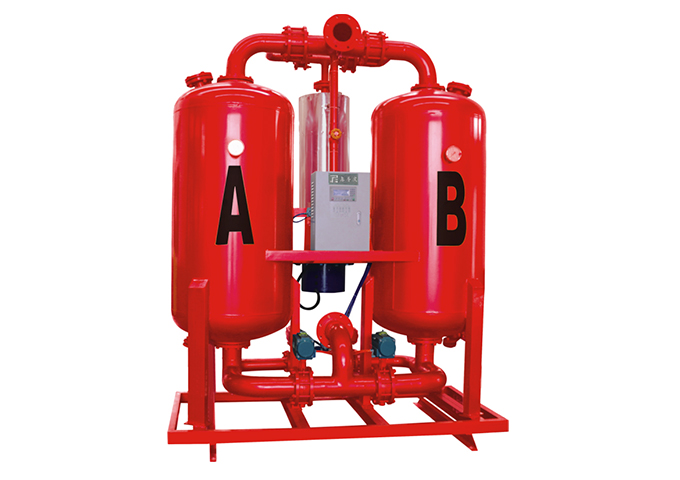

HL-WX heatless adsorption dryer

Focus on post-treatment system of compressed air and medical gas system

National high-tech enterprise focusing on post-treatment and purification system of compressed air and medical gas system. It has the ability of completely independent research and development, has applied for/obtained nearly 100 patents, and has formed a three-dimensional intellectual property protection system. Its products are sold to foreign countries and won many awards. He is responsible for formulating a number of national and industrial standards. For the purification and post-treatment of compressed gas and the research, development and production of medical gas system. Product scope: freezing dryer, adsorption dryer, pipeline precision filtration, oxygen generator, nitrogen generator, gas water separator, filter element, pneumatic element, etc.

Parameters
Download

Model	Maximum handling capacity	Input power	Interface size	Power Supply	Weight (KG)	Overall dimensions
HL-1WX	1.2	0.2	RC1"	220V50HZ	105	670x360x1265
HL-2WX	2.4	0.2	RC1"	220V50HZ	135	780x360x1485
HL-3WX	3.8	0.2	RC1"	220V50HZ	187	850x400x1385
HL-6WX	6.5	0.2	RC1-1/2"	220V50HZ	238	1000x450x1700
HL-8WX	8.5	0.2	RC2"	220V50HZ	292	1100x500x2050
HL-10WX	11.5	0.2	RC2"	220V50HZ	466	1200x500x2030
HL-13WX	13.5	0.2	RC2"	220V50HZ	520	1300x500x2230
HL-15WX	17.0	0.2	DN65	220V50HZ	670	1300x560x2360
HL-20WX	23.0	0.2	DN80	220V50HZ	798	1400x560x2530
HL-25WX	27.0	0.2	DN80	220V50HZ	980	1650x600x2570
HL-30WX	33.0	0.2	DN80	220V50HZ	1278	1750x750x2630
HL-40WX	42.0	0.2	DN100	220V50HZ	1624	1850x750x2650
HL-50WX	55.0	0.2	DN100	220V50HZ	1624	1950x850x2650
HL-60WX	65.0	0.2	DN100	220V50HZ	2650	2200x900x2650
HL-80WX	85.0	0.2	DN125	220V50HZ	3520	2400x1000x2700
HL-100WX	110.0	0.2	DN150	220V50HZ	4320	2500x1100x2750
HL-120WX	130.0	0.2	DN150	220V50HZ	4750	2650x1200x2800
HL-150WX	160.0	0.2	DN200	220V50HZ	5260	2800x1300x2900

Inlet pressure Mpa	0.42	0.49	0.56		0.63	0.70		0.77	0.84	0.91		0.98	1.05		1.23		1.41	1.58		1.76
Pressure correction factor	0.65	0.74	0.83		0.91	1.00		1.04	1.08	1.12		1.16	1.20		1.29		1.37	1.45		1.52

Intake air temperature °C		15		20			25		30		35			38		42			45
Pressure correction factor		1.21		1.16			1.12		1.07		1.03			1.00		0.84			0.72

Selection of adsorption dryer:

Temperature correction coefficient C

Maximum intake air temperature		°C			25			30			35			40		45				50
Maximum intake air temperature		CFT			1			1			1			0.97		0.88				0.73

Pressure correction factor CFP

Minimum intake pressure	Barg	4	5			6	7			8		8	9		10		11		12		13
Minimum intake pressure	CFP	0.63	0.75			0.88	1.00			1.13		1.25	1.25		1.38		1.50		1.63		1.75

Dewpoint correction factor CFD

Required dew point CFD				°C (°F)					-20(-4)					-40(-40)				-70(-100)
Required dew point CFD				CFD					1.1					1.1				0.7

After selecting the minimum inlet pressure correction factor (CFP) of the dryer (when determining the minimum working pressure of the dryer, the pressure loss of the front equipment in the system must be considered), the maximum inlet test correction factor (CFT) of the dryer, and the dew point correction factor (CFD), the flow formula that the dryer should meet is calculated as follows:

Select the dryer model from the table according to the minimum flow that the dryer should meet, and ensure that the flow of the selected model is at least equal to or greater than this.

Model	Maximum handling capacity	Input power	Interface size	Power Supply	Weight (KG)	Overall dimensions
HL-1WX	1.2	0.2	RC1"	220V50HZ	105	670x360x1265
HL-2WX	2.4	0.2	RC1"	220V50HZ	135	780x360x1485
HL-3WX	3.8	0.2	RC1"	220V50HZ	187	850x400x1385
HL-6WX	6.5	0.2	RC1-1/2"	220V50HZ	238	1000x450x1700
HL-8WX	8.5	0.2	RC2"	220V50HZ	292	1100x500x2050
HL-10WX	11.5	0.2	RC2"	220V50HZ	466	1200x500x2030
HL-13WX	13.5	0.2	RC2"	220V50HZ	520	1300x500x2230
HL-15WX	17.0	0.2	DN65	220V50HZ	670	1300x560x2360
HL-20WX	23.0	0.2	DN80	220V50HZ	798	1400x560x2530
HL-25WX	27.0	0.2	DN80	220V50HZ	980	1650x600x2570
HL-30WX	33.0	0.2	DN80	220V50HZ	1278	1750x750x2630
HL-40WX	42.0	0.2	DN100	220V50HZ	1624	1850x750x2650
HL-50WX	55.0	0.2	DN100	220V50HZ	1624	1950x850x2650
HL-60WX	65.0	0.2	DN100	220V50HZ	2650	2200x900x2650
HL-80WX	85.0	0.2	DN125	220V50HZ	3520	2400x1000x2700
HL-100WX	110.0	0.2	DN150	220V50HZ	4320	2500x1100x2750
HL-120WX	130.0	0.2	DN150	220V50HZ	4750	2650x1200x2800
HL-150WX	160.0	0.2	DN200	220V50HZ	5260	2800x1300x2900

Inlet pressure Mpa	0.42	0.49	0.56		0.63	0.70		0.77	0.84	0.91		0.98	1.05		1.23		1.41	1.58		1.76
Pressure correction factor	0.65	0.74	0.83		0.91	1.00		1.04	1.08	1.12		1.16	1.20		1.29		1.37	1.45		1.52

Intake air temperature °C		15		20			25		30		35			38		42			45
Pressure correction factor		1.21		1.16			1.12		1.07		1.03			1.00		0.84			0.72

Selection of adsorption dryer:

Temperature correction coefficient C

Maximum intake air temperature		°C			25			30			35			40		45				50
Maximum intake air temperature		CFT			1			1			1			0.97		0.88				0.73

Pressure correction factor CFP

Minimum intake pressure	Barg	4	5			6	7			8		8	9		10		11		12		13
Minimum intake pressure	CFP	0.63	0.75			0.88	1.00			1.13		1.25	1.25		1.38		1.50		1.63		1.75

Dewpoint correction factor CFD

Required dew point CFD				°C (°F)					-20(-4)					-40(-40)				-70(-100)
Required dew point CFD				CFD					1.1					1.1				0.7

Select the dryer model from the table according to the minimum flow that the dryer should meet, and ensure that the flow of the selected model is at least equal to or greater than this.
