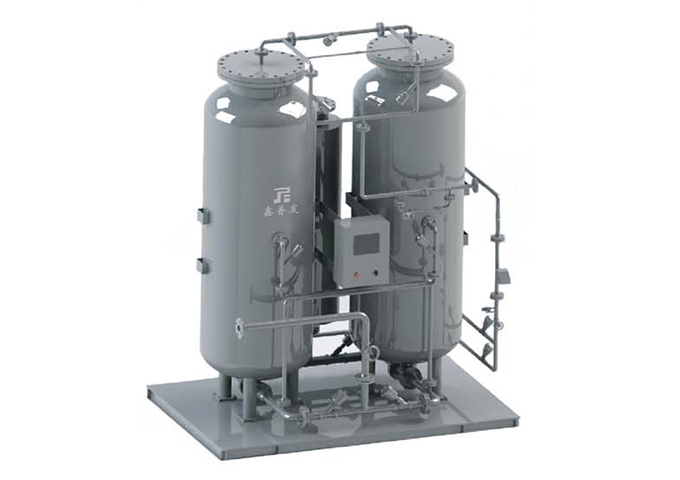

PSA PSA oxygen generator

PSA oxygen generation system is a new type of equipment that uses advanced pressure swing adsorption (PSA) technology to extract oxygen from the air. It uses air as raw material and zeolite molecular sieve as adsorbent. Under normal temperature and low pressure, the selective adsorption of oxygen and nitrogen by zeolite molecular sieve and its adsorption capacity increase with the increase of adsorption pressure and decrease with the decrease of adsorption pressure. Nitrogen is adsorbed under pressure, oxygen is enriched, nitrogen is desorbed under reduced pressure, and molecular sieve is regenerated at the same time. Oxygen is separated by alternating cycles.

Parameters
Download

Model	Air filter buffer tank	Oxygen process buffer tank	Flow value corresponding to oxygen content		Host size mm
Model	Air filter buffer tank	Oxygen process buffer tank	90%	93%	Host size mm
HYO2-5	0.5	0.5	5	4.45	1400x1000x2150
HYO2-10	0.75	0.75	10	8.9	1500x1100x2300
HYO2-15	1	1	15	13.35	1650x1100x2200
HYO2-20	1.5	1.5	20	17.8	1800x1400x2470
HYO2-30	2	2	30	26.7	2000x1400x2670
HYO2-40	3	3	40	35.6	2200x1400x3000
HYO2-50	4	4	50	44.5	2400x1600x3000
HYO2-60	5	5	60	53.4	2600x1800x3200
HYO2-80	6	6	80	71.2	2900x2100x3400
HY02-100	7	7	100	89	3200x2300x3500

Description of design conditions:
• The above data sheet is calculated for compressed air under the inlet pressure of 0.7Mpa and inlet temperature of 20 ° C (reference conditions for gas unit state: 20 ℃, 1013mbar (a), relative humidity 0%, altitude 0 m)
• If the inlet air pressure, inlet air temperature, ambient temperature, humidity and altitude conditions of the user change, the above data sheet must be corrected. For example, if the inlet pressure of the same type of nitrogen generator is increased, the performance will be improved; On the contrary, the performance will decrease with the increase of intake air temperature, ambient humidity and altitude. Please consult the technicians of Haoyu Company for details
• The compressed air in front of the adsorption tower of the oxygen generator must meet the ISO 8573-1:20101.2.1 level, which is very important to prevent the molecular engineer from entering oil and water
• The dimensions and weights in the above table do not include air process buffer tank and oxygen process buffer tank, and the actual dimensions and weights are subject to the final design
• The air buffer tank and oxygen buffer tank shall be selected with proper volume, and the distance from the nitrogen generator shall not exceed 10m.

Model	Air filter buffer tank	Oxygen process buffer tank	Flow value corresponding to oxygen content		Host size mm
Model	Air filter buffer tank	Oxygen process buffer tank	90%	93%	Host size mm
HYO2-5	0.5	0.5	5	4.45	1400x1000x2150
HYO2-10	0.75	0.75	10	8.9	1500x1100x2300
HYO2-15	1	1	15	13.35	1650x1100x2200
HYO2-20	1.5	1.5	20	17.8	1800x1400x2470
HYO2-30	2	2	30	26.7	2000x1400x2670
HYO2-40	3	3	40	35.6	2200x1400x3000
HYO2-50	4	4	50	44.5	2400x1600x3000
HYO2-60	5	5	60	53.4	2600x1800x3200
HYO2-80	6	6	80	71.2	2900x2100x3400
HY02-100	7	7	100	89	3200x2300x3500
